VOID 4

Since the release of the first generation in 2012 ants its first successes in the World Cup, the Void has progressed in order to support riders in an ever more committed sports.

This 4th generation offers a concentrate of our research for even more pleasure and performance.

+ Optimized hydraulics for better response

+ Increased sensivity

+ Premium finishes

+ New adjustable hydraulic bottom out.

+ Optimized rod guide housing.

+ New adapted air piston more tolerant to the constraints of some frame kinematic.

Mounting : eyelets / trunnion
Strokes and Eye to Eye dimensions : Imperials and Métrics

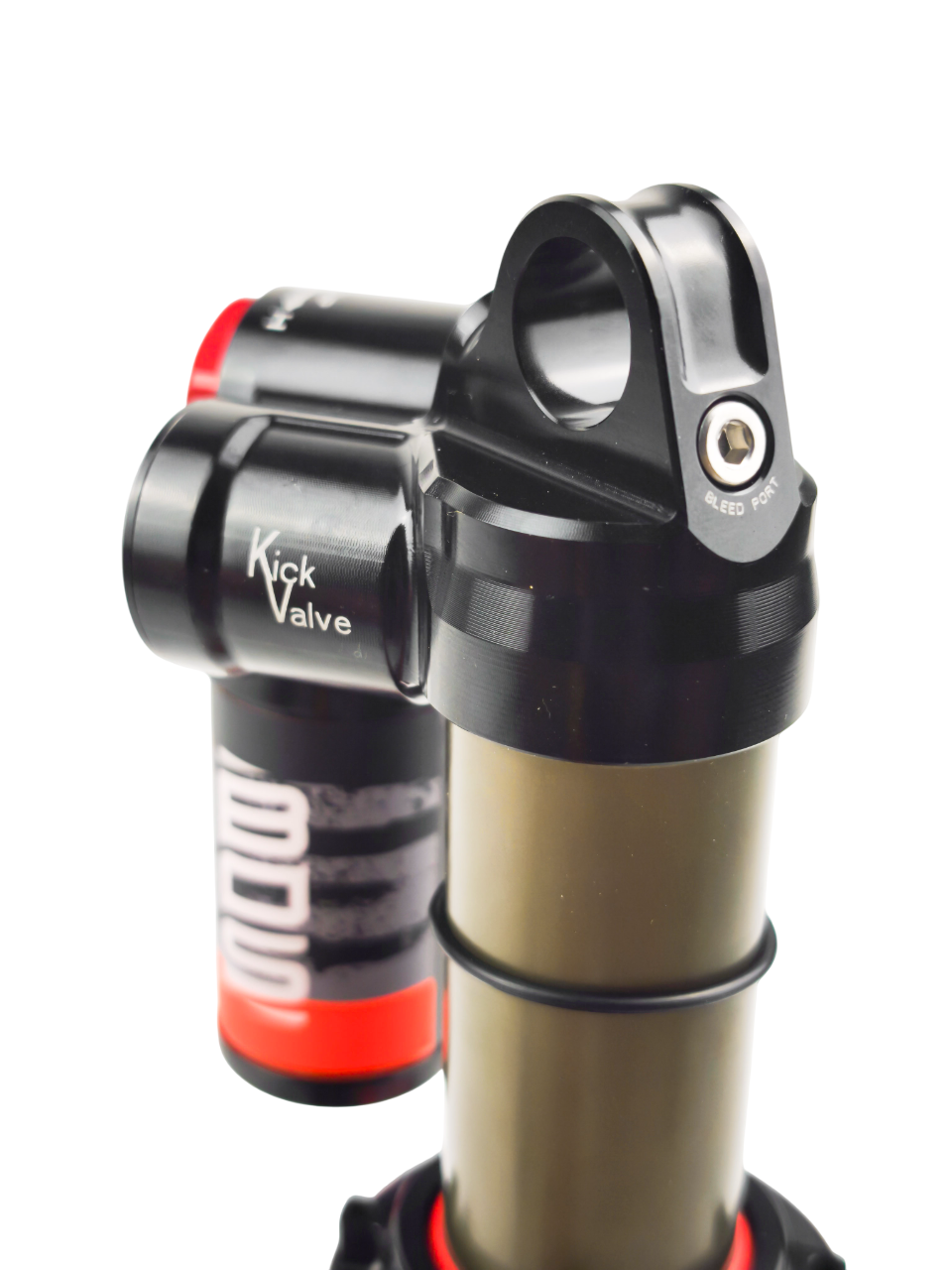

Hydraulics : 3 ways + adjustable bottom out + (kick valve) Set in factory.
Settings :
- Low speed compression (23 clicks*)
- High speed compression (25 clicks*)
- Low speed Rebond (30 clicks*)
- Hydraulic bottom out ajustable (11 clicks)
- Pedaling plateform lever (in option)

* (More or less 2 clicks)

Spring :
High volume air chambers.
Settings :
- Pressure (300 Psi max)
- positive and négative air volume adjustements (by Orings).

Weight : 550gr ( size 230x60mm type lever)

Mounting Kit Compatibility : MKP4 (sold separately)
